HX · 120Hz ProMotion Soft OLED

HX iPhone Screens Wholesale
120Hz ProMotion Soft OLED

HX high-performance soft OLED displays engineered for ProMotion 120Hz models — original size and thickness, perfect fit, G+F touch, 100% sRGB and IC removable. From iPhone 12 to 17 Pro Max.

Get HX Model & Price List View Catalog

120Hz ProMotion

Soft OLED G+F

IC removable

Original size & thickness

1.00 saturation

X to 17 Pro Max

HX 120Hz OLED

iPhone 17 Pro Max

120Hz

Refresh

1000

Nits

1.00

Sat.

Mission & Positioning

What is HX ?

HX is DXspacex’s high-performance soft OLED brand tuned for ProMotion 120Hz models. Every HX screen keeps the original size and thickness of the OEM display for a perfect,
flush fit — no case lifting, no edge gap. With G+F touch, IC removable, 1:1,000,000 contrast and 1.00 saturation,
HX is the mid-premium choice for repair shops that demand a 120Hz feel without paying original-module prices.

120Hz ProMotion on Pro models Flexible Soft OLED G+F touch panel IC removable / transferable Original size & thickness 1.00 saturation 6500±500 K color temp

Why HX

Built for 120Hz ProMotion

HX sits between value and original — a flexible-OLED platform that reproduces the high-refresh experience while keeping service and cost in your control.

120Hz ProMotion

Pro and Pro Max SKUs are tuned for 120Hz high-refresh, reproducing smooth scrolling and animations on 13 Pro Max up to 17 Pro Max.

Original Size & Thickness

Flexible OLED glass matches OEM dimensions exactly — bezel height, thickness and flex routing align with the original chassis for a true flush fit.

IC Removable

Driver IC is removable so it can be transferred or replaced during service — lowers defect cost and keeps the repair workflow flexible.

1.00 Saturation & 6500K

1.00 saturation with 6500±500 K color temperature delivers vivid, neutral tones close to factory calibration, with 1:1,000,000 contrast.

G+F Touch, 800–1000 nits

Glass-on-film touch layer with 800–1000 nit brightness gives a crisp, responsive display that stays readable in bright light.

17 Models, X → 17 Pro Max

Cover from iPhone 12 / 12 Pro up to iPhone 17 Pro Max, including all Plus and Pro Max sizes — one SKU family, consistent spec sheet.

Specifications

HX Soft OLED Spec Sheet

Every HX SKU shares the same platform. Variation is only in panel size, resolution and the 120Hz flag on Pro models.

Parameter	HX Soft OLED Display
Display technology	Flexible Soft OLED self-luminous, G+F touch
Backlight	No backlight (OLED self-emissive)
Brightness	800 – 1000 nits
Contrast ratio	1 : 1,000,000
Color temperature	6500 ± 500 K
Saturation	1.00 (≈ sRGB)
Refresh rate	120Hz ProMotion on Pro / Pro Max SKUs; 60Hz on standard / Plus SKUs
Touch structure	G+F (Glass-on-Film)
Fit	Original size & thickness, perfect fit, no case lifting
Coverage	iPhone 12 / 12 Pro → iPhone 17 Pro Max (17 SKUs)

Product Catalog

HX Model Coverage List

17 HX soft OLED SKUs. The “Details” link opens the reference product page for each model — replace these with your own DXspacex product / WooCommerce URLs in WordPress.

Model	120Hz	Size	Resolution	Product

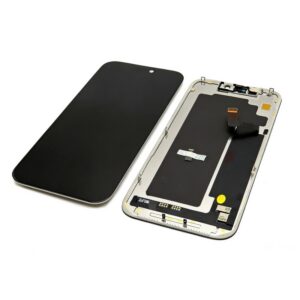

iPhone 17 Pro Max	YES	6.9″	2868 × 1320	Details

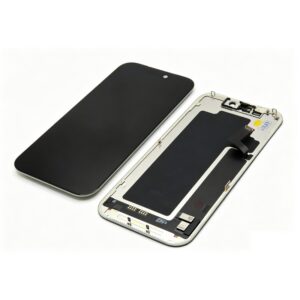

iPhone 17 Pro	YES	6.3″	2622 × 1206	Details
iPhone 17	—	6.3″	2622 × 1206	Details
iPhone 16 Pro Max	YES	6.9″	2796 × 1290	Details
iPhone 16 Pro	YES	6.1″	2556 × 1179	Details

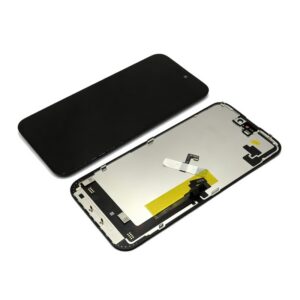

iPhone 16 Plus	—	6.7″	2796 × 1290	Details
iPhone 16	—	6.1″	2556 × 1179	Details
iPhone 15 Pro Max	YES	6.7″	2796 × 1290	Details
iPhone 15 Pro	YES	6.1″	2556 × 1179	Details

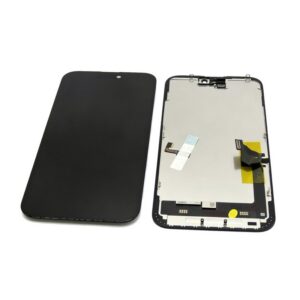

iPhone 15 Plus	—	6.7″	2796 × 1290	Details

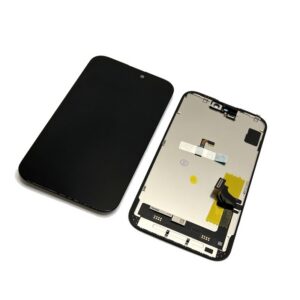

iPhone 15	—	6.1″	2556 × 1179	Details
iPhone 14 Pro Max	YES	6.7″	2796 × 1290	Details
iPhone 14 Pro	YES	6.1″	2556 × 1179	Details
iPhone 14 Plus	—	6.7″	2778 × 1284	Details
iPhone 13 Pro Max	YES	6.7″	2778 × 1284	Details
iPhone 12 Pro Max	—	6.7″	2778 × 1284	Details
iPhone 12 / 12 Pro	—	6.1″	2532 × 1170	Details

Note: 9 of the 17 SKUs are 120Hz ProMotion (iPhone 13 Pro Max through 17 Pro Max, all Pro / Pro Max). Standard and Plus models run at 60Hz. Stock and pricing move fast — ask for the current HX list.

HX Product Overview

SKUs covered

120Hz ProMotion models

1:1M

Contrast ratio

1.00

Saturation

FAQ

Frequently Asked Questions

Is every HX screen 120Hz?

No. HX 120Hz ProMotion is enabled on the Pro and Pro Max SKUs (e.g. iPhone 14/15/16/17 Pro and Pro Max, plus 13 Pro Max). Standard and Plus models run at 60Hz. The catalog table above flags each SKU with a YES / —.

What does “IC removable” mean for HX?

The driver IC is removable, so your technicians can transfer or replace it during service. This lowers the cost of a defective screen and keeps the repair workflow flexible.

Does HX fit as perfectly as the original?

Yes. HX soft OLED panels are produced to the original size and thickness, so the bezel height, thickness and flex routing match the OEM chassis — no case lifting or edge gaps.

How does HX compare with DD and JK?

DD spans soft + hard OLED at 0.98 saturation; JK focuses on value In-cell FHD (plus some soft/hard OLED); HX is the soft-OLED line tuned for 120Hz ProMotion at 1.00 saturation. Tell us which models and budget and we’ll recommend the right tier.

What is the minimum order quantity and warranty?

MOQ starts at 50 pcs per model for wholesale; larger orders get better tier pricing. All HX screens are QC-tested before shipment and carry a standard warranty — ask for the full warranty terms on the quote.

Ready to Order

Stock your shop with HX 120Hz screens

Request the live HX model list, pricing and lead time. We ship worldwide from Shenzhen to repair shops, wholesalers and distributors.

MOQ 50 pcs

Lead time 7–15 days

Shipping Worldwide

Warranty Included

Request HX Price List

Typical response within 24 hours. Provide your target models and monthly quantity for the best quotation.
